Why LFP state of charge is hard to estimate, and how hybrid methods can help

Lithium iron phosphate (LFP) cells have a broad, flat open-circuit voltage region. In that region, voltage alone gives a weak correction signal for state of charge (SOC). Current measurement, charge history and the cell model become particularly important.

A hybrid estimator combines a model-based estimate with a learned correction. It is one approach to this problem. Its value has to be demonstrated against suitable alternatives on the cells and operating conditions the system will use.

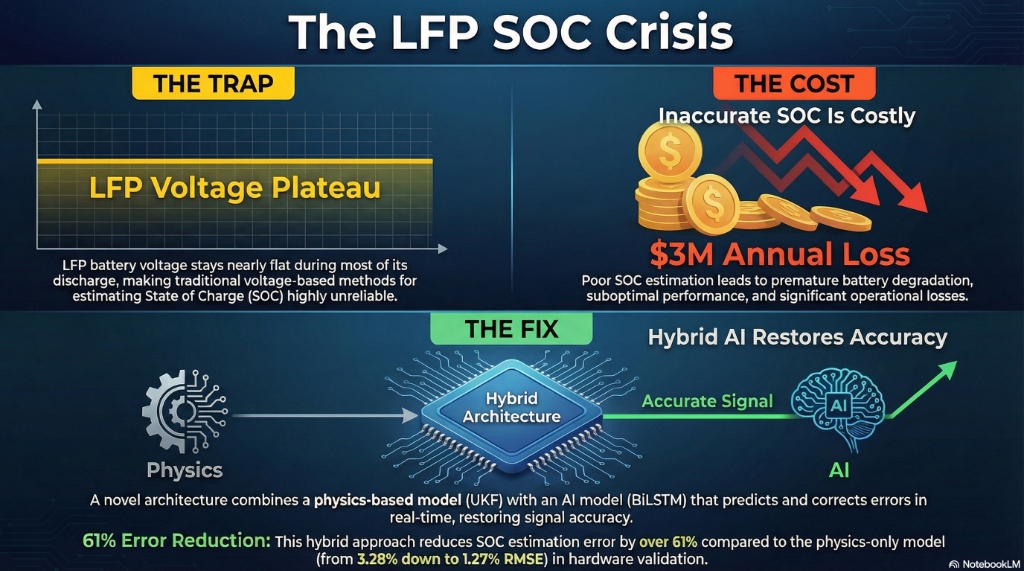

Why the voltage plateau matters

SOC describes stored charge relative to a defined capacity. A battery management system (BMS) commonly estimates it using voltage, current and temperature.

Integrating current tracks charge entering and leaving the cell. An initial SOC error can persist, while a current-sensor offset accumulates error over time. A model-based filter uses measured voltage to correct the estimate, with the correction depending on the model and measurement uncertainty.

LFP's plateau makes that correction difficult. Its slope and boundaries depend on the cell and measurement conditions. Hysteresis adds a dependence on charge and discharge history. Relaxation after a load change also affects how voltage should be interpreted.

An original study of hysteresis-aware LFP estimation compares Kalman-filter variants and particle filters in a model-in-the-loop setting. It supports evaluating model-based alternatives with hysteresis; its results do not establish a universal plateau range or field accuracy.

For an engineering review, use the measured voltage curve for the selected cell. Record temperature, rest conditions, charge direction and aging state alongside it.

How uncertainty affects operating decisions

SOC uncertainty can constrain the energy reserved for backup or offered for dispatch. The appropriate margin depends on the duty, the protection limits and the consequences of error.

During discharge, an overestimate can overstate the remaining reserve. During charging, an underestimate can overstate the remaining charge headroom. Evaluate both directions of error against the intended operating sequence.

SOC is also different from deliverable energy. Load, temperature, voltage limits and cell differences affect what the system can supply. A one-percentage-point SOC error does not automatically translate into the same percentage of lost usable energy.

Per-cell estimates can help identify which cell approaches a limit first. Recovering energy held in other series cells also depends on balancing, topology and the operating limits.

How a residual estimator is structured

A residual architecture adds a learned correction to a baseline:

SOC_final = SOC_baseline + ε_learned(context)

The baseline may combine coulomb counting with an equivalent-circuit model and an extended Kalman filter. The learned model is trained to predict remaining error from available inputs and their history.

Research on mechanistically guided residual learning reports benefits on its evaluated battery datasets. That supports investigating the approach. A separate evaluation is needed to establish its benefit on a particular LFP system.

A bounded correction limits the contribution of the learned layer. Input and model checks can trigger a return to the baseline. These measures do not remove baseline error: if the baseline is wrong, a small correction can still leave a large final error.

Validate the baseline, learned layer and switching behavior together. Keep voltage, current and temperature protections independent of confidence in the SOC estimate.

Compare methods under the same conditions

Model selection should consider accuracy, calibration effort, computational load and failure behavior together. A detailed model, a learned estimator and a hybrid can each be candidates. Architecture alone does not settle the choice.

We recommend an evaluation plan that includes:

1. Independent test data. Separate training and evaluation cells and operating sequences. Test across the intended temperature, charge range and aging conditions.
2. Initialization and sensor errors. Check incorrect starting SOC, current offsets, measurement noise and missing inputs. Record how the estimate recovers.
3. Error by operating region. Examine the plateau, charge and discharge transitions, and conditions near operating limits. Report worst cases alongside average error.
4. Embedded execution. Measure latency, memory and power on the target controller, including the cost of checks and fallback.
5. Control consequences. Check how estimation uncertainty changes charging limits, reserve decisions and available power.

A compact residual model may reduce a particular model error. Whether it needs less calibration data or fits the controller's limits is a measured outcome of this evaluation.

What cell-level measurement can add

Electrochemical impedance spectroscopy (EIS) measures a cell's response to a small excitation across frequencies. Impedance features can provide additional inputs associated with electrochemical changes. Their interpretation depends on the cell and measurement conditions.

An original impedance-based battery diagnosis experiment uses a trained statistical model to estimate capacity and life for LCO/graphite cells under specified test conditions. Such results support further validation; they do not make impedance a direct measurement of a unique chemical state or guaranteed SOC accuracy.

Our EIS page explains the measurement approach.

The approach we design for

We are designing Core to combine a model-based baseline, per-cell estimation and a bounded learned correction. The design accounts for temperature, aging and the embedded controller's processing limits.

Sense is being developed to add cell-level measurement inputs. The link from those measurements to SOC, usable power and facility decisions requires cell characterization and validation of the complete estimation chain. Our technology page connects these functions.

Operators need to know how far the SOC estimate may differ from the actual charge under their operating conditions. Testing should establish that uncertainty before the estimate is used to set reserves or charging limits.
